For a ride that's as thrilling as it is sleek!
Nissan
_
Navara
STEALTH
The HARTES METAL™ Stealth, a pinnacle in directional off-road wheels, combines innovation with unmatched perfection, often imitated but never duplicated.
STEALTH
Gloss Black Milled
YSM-751
One-Piece Cast
Directional off-road wheels are certainly nothing new and were readily available when this design was conceived. We looked at what was currently on the market and conceived what was necessary for creating the perfect directional design. We have incorporated our collective design ideas into this finished masterpiece. The HARTES METAL™ Stealth directional design has been a revelation and while people have tried to imitate our design, you simply cannot improve on perfection. Often imitated, yet never duplicated!
Available Finish
Specification
Wheels Size, ET PCD, CB, Load Rate, Wight, and Cap
Size | H | PCD | ET | C/B | Cap | Load Rate | Weight |
|---|---|---|---|---|---|---|---|
20 x 10J | 10 | 114.3/127 | -18 | 106.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
20 x 10J | 12 | 135/139.7 | -18 | 106.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
20 x 10J | 8 | 170 | -18 | 125.2 | CP708PS113 | 3700 lbs | |
20 x 10J | 10 | 114.3/127 | -18 | 87.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
20 x 10J | 8 | 165.1 | -18 | 125.2 | CP708PS113 | 3700 lbs | |
20 x 10J | 8 | 165.1/170 | -18 | 125.2 | CP708PS113 | 3700 lbs | 34.6 lbs |
20 x 10J | 8 | 180 | -18 | 124.3 | CP708PS135 | 3700 lbs | 34.6 lbs |
20 x 10J | 10 | 114.3/127 | -18 | 78.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
20 x 10J | 10 | 139.7/150 | -18 | 106.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
20 x 10J | 10 | 139.7/150 | -18 | 110.1 | CP712PS184 | 2500 lbs | 35.7 lbs |
22 x 12J | 10 | 114.3/127 | -44 | 78.1 | CP712PS184 | 2500 lbs | 43.2 lbs |
22 x 12J | 8 | 165.1 | -44 | 106.1 | CP708PS113 | 3700 lbs | |
22 x 12J | 8 | 170 | -44 | 106.1 | CP708PS113 | 3700 lbs | |
22 x 12J | 8 | 170 | -44 | 125.2 | CP708PS113 | 3700 lbs | |
22 x 12J | 10 | 114.3/127 | -44 | 87.1 | CP712PS184 | 2500 lbs | 43.2 lbs |
22 x 12J | 10 | 114.3/127 | -44 | 106.1 | CP712PS184 | 2500 lbs | 43.2 lbs |
22 x 12J | 10 | 139.7/150 | -44 | 110.1 | CP712PS184 | 2500 lbs | 43.2 lbs |
22 x 12J | 8 | 165.1/170 | -44 | 125.2 | CP708PS113 | 3700 lbs | 45.0 lbs |
22 x 12J | 10 | 139.7/150 | -44 | 106.1 | CP712PS184 | 2500 lbs | 43.2 lbs |
22 x 12J | 8 | 165.1 | -44 | 125.2 | CP708PS113 | 3700 lbs | |
22 x 12J | 8 | 180 | -44 | 124.3 | CP708PS135 | 3700 lbs | 45.0 lbs |
22 x 12J | 12 | 135/139.7 | -44 | 106.1 | CP712PS184 | 2500 lbs | 42.1 lbs |
Specification
Wheels Size, ET PCD, CB, Load Rate, Wight, and Cap
Size | H | PCD | ET | C/B | Cap |
|---|---|---|---|---|---|
20 x 10J | 10 | 114.3/127 | -18 | 106.1 | CP712PS184 |
20 x 10J | 12 | 135/139.7 | -18 | 106.1 | CP712PS184 |
20 x 10J | 8 | 170 | -18 | 125.2 | CP708PS113 |
20 x 10J | 10 | 114.3/127 | -18 | 87.1 | CP712PS184 |
20 x 10J | 8 | 165.1 | -18 | 125.2 | CP708PS113 |
20 x 10J | 8 | 165.1/170 | -18 | 125.2 | CP708PS113 |
20 x 10J | 8 | 180 | -18 | 124.3 | CP708PS135 |
20 x 10J | 10 | 114.3/127 | -18 | 78.1 | CP712PS184 |
20 x 10J | 10 | 139.7/150 | -18 | 106.1 | CP712PS184 |
20 x 10J | 10 | 139.7/150 | -18 | 110.1 | CP712PS184 |
22 x 12J | 10 | 114.3/127 | -44 | 78.1 | CP712PS184 |
22 x 12J | 8 | 165.1 | -44 | 106.1 | CP708PS113 |
22 x 12J | 8 | 170 | -44 | 106.1 | CP708PS113 |
22 x 12J | 8 | 170 | -44 | 125.2 | CP708PS113 |
22 x 12J | 10 | 114.3/127 | -44 | 87.1 | CP712PS184 |
22 x 12J | 10 | 114.3/127 | -44 | 106.1 | CP712PS184 |
22 x 12J | 10 | 139.7/150 | -44 | 110.1 | CP712PS184 |
22 x 12J | 8 | 165.1/170 | -44 | 125.2 | CP708PS113 |
22 x 12J | 10 | 139.7/150 | -44 | 106.1 | CP712PS184 |
22 x 12J | 8 | 165.1 | -44 | 125.2 | CP708PS113 |
22 x 12J | 8 | 180 | -44 | 124.3 | CP708PS135 |
22 x 12J | 12 | 135/139.7 | -44 | 106.1 | CP712PS184 |
Accessories
Wheels Accessories Finsih

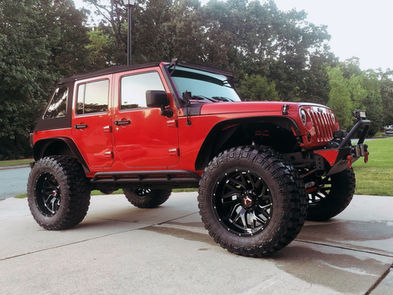

Gallery
Discover our gallery featuring wheels on Jeeps and pickups, illustrating their seamless integration and personalized style enhancements tailored for these vehicles.
